PB12 8-Light Kit is shipped by Freight by default which will take about 10-15 days to arrive.
The INFINIBAR Pixel Bar is Aputure’s first RGBWW full-color LED pixel bar. Featuring 96 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB12 is a 4-foot (120cm) pixel bar that excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.
The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB12’s 96 RGB pixels.
Main Features
- - 4-Foot (120cm) 27W RGBWW Full Color LED Pixel Bar
- - 96 Individual Pixels (Lighting Zones)
- - Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights
- - 10 Splicing Connectors*: Straight, Triangle Flat, Triangle 3D, Hexagon Flat, Hexagon 3D, 3-Way Flat, 4-Way Flat, 6-Way Flat, Square Flat, Square 3D
- - Share AC Power Over Multiple INFINIBARs w/ Splicing Connectors
- - Mounting: INFINIBAR Clamp (Baby Pin) & Neodymium Magnets, 1/4-20in Screw Mount
-
Approx. 80 Min Battery Life at Max Output (59.2Wh)
-
Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
- Multiple Control Methods: Sidus Link® App, DMX/RDM via USB-C**, LumenRadio CRMX
- 32 Built-In DMX Profiles, 9 System FX, 7 Pixel FX
- Supports SidusPro® FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
-
Optional Lighting Control Accessories: 1) Softbox, 2) 45º Slip-On Light Control Grid
- * INFINIBAR Includes 1 Straight Connector. Remaining 9 Connectors Sold Separately
- ** 2 Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately
What’s in the Box
INFINIBAR PB12
- 1x INFINIBAR PB12
- 1x 48W DC Power Adapter (3m)
- 1x AC Locking Power Cable (1.5m)
- 2x Magnetic Spacer
- 1x INFINIBAR Clamp to Baby Pin Adapter
- 1x INFINIBAR Straight Connector
- 1x 5mm Hex Wrench
- 1x Carrying Case
INFINIBAR PB12 8-Light Kit
- 8x INFINIBAR PB12
- 8x 48W DC Power Adapter (3m)
- 1x AC Locking Power Cable (4m)
- 8x AC Locking Power Cable (1.5m)
- 1x 330W Power Adapter with 8-Way Splitters
- 16x Magnetic Spacer
- 8x INFINIBAR Clamp to Baby Pin Adapter
- 8x INFINIBAR Straight Connector
- 1x 5mm Hex Wrench
- 8x INFINIBAR PB12 45º Light Control Grid
- 1x Flight Case
INFINIBAR PB12 8-Light Kit Dimensions
- - Packing Dimensions: 143 x 59 x 21cm / 56.69 x 23.23 x 8.27in
- - Gross Weight: 53.1kg / 117.07lbs
Customer Reviews
Love it so far, but haven’t used it on a shoot yet. I immediately started replacing my nanlites. Currently have 3 PB12 Infinibars. Will be ordering more when I sell my 8ft. Nanlites.
One request would be to have a blueprint of where the lights are on the app. So you can just press the exact one you need and adjust it as if it’s you actually looking at your setup real time. Hope that makes sense…
Overall, the mounting system is really convenient and easy to work with. Brightness and effects of the lights are great.
Photo:

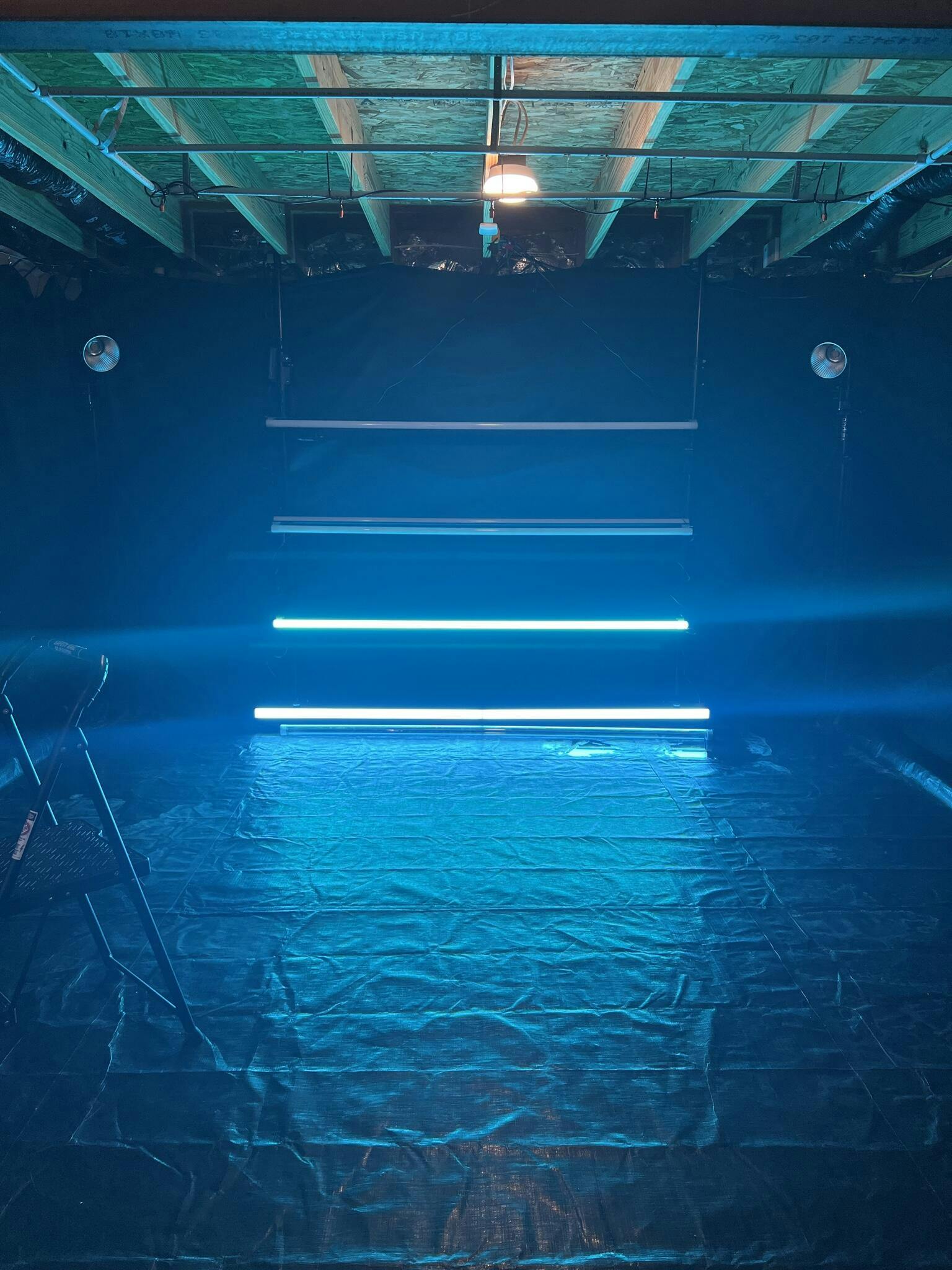

Bottom is the Aputure and the rest is Nanlite.
Cons: Battery life could be better at full intensity, the menu scroll wheel seems finicky like it could be broken over time.. the app is not consistent at this time.. as far as staying connected when I add fixtures. I have to connect app every time I’m ready to use the lights
Pros: Modularity of the infini bar, easy menu navigation, light shape design vs the Cylindrical shape.. and this is coming from a guy who owns them all 😊 . I own the Astera Titan tube, Nanlite Tube and Quasar Science tube so I see where aputure borrowed a few features from 😉
